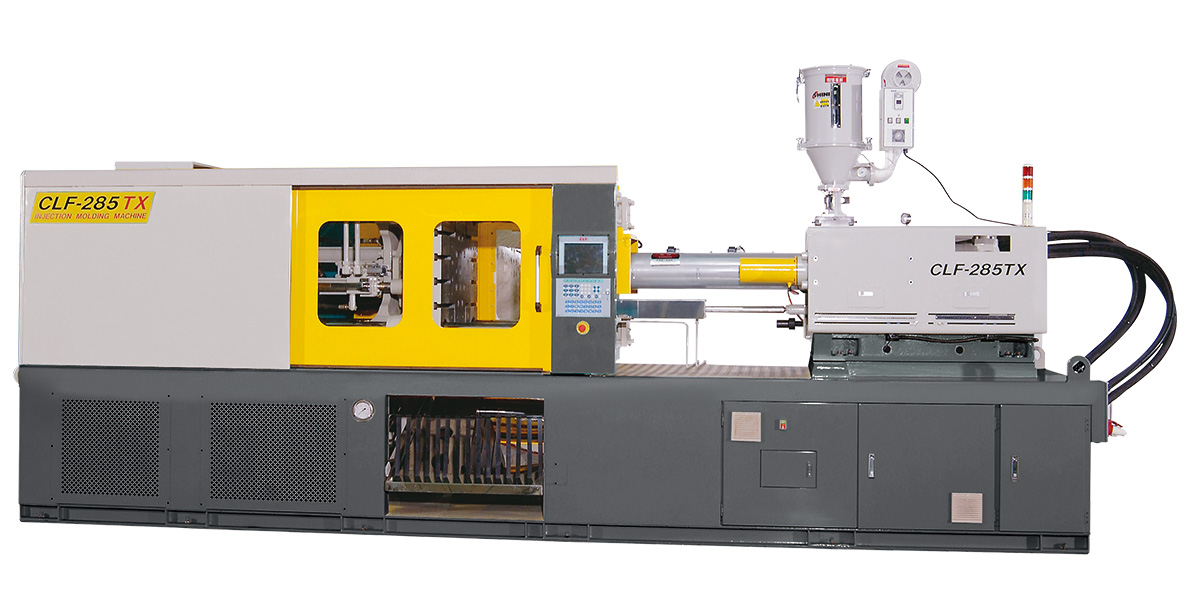

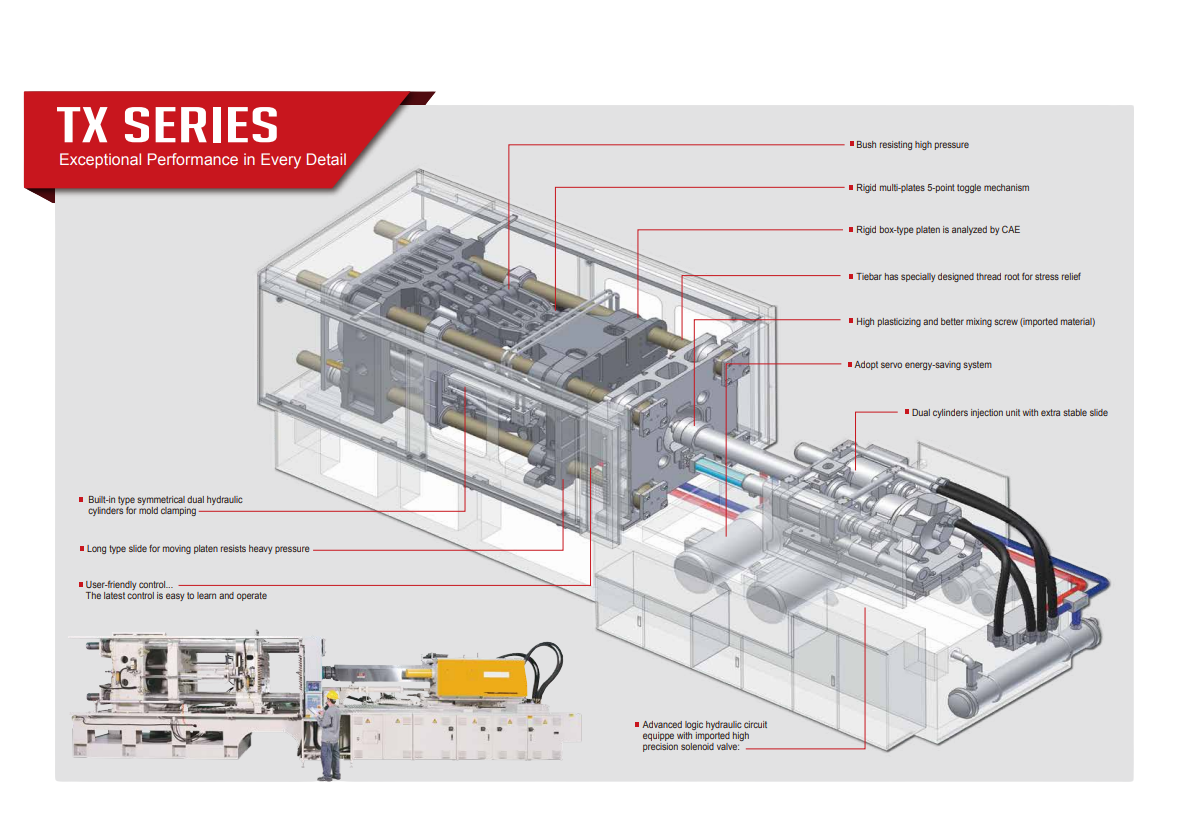

High Speed Injection Molding Machine – CLF TX Series

At CLF, a trusted name among leading plastic injection molding machine manufacturers, we’ve channeled decades of large-tonnage expertise into our TX Series high speed injection molding machines. Covering 60 to 1,400 tons, the TX Series combines five-point toggle kinematics, servo-hydraulic drives, and box-frame platens to deliver industry-leading cycle times, low energy consumption, and rock-solid part quality—so you can hit ambitious output targets without compromise. Whether you’re scaling up packaging or electronics production, this injection molding machine is built to deliver speed without sacrificing stability.

Performance at a Glance

All cycle times and energy figures measured under standard thin-wall packaging conditions. Actual performance varies by mold design and processing parameters.

Core High Speed Injection Molding Machine Features

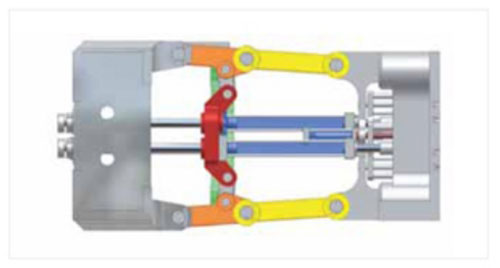

• Five-Point Toggle Mechanism

  Specially tuned motion profile locks and releases molds in milliseconds, enabling consistent sub-2 s dry-cycles.

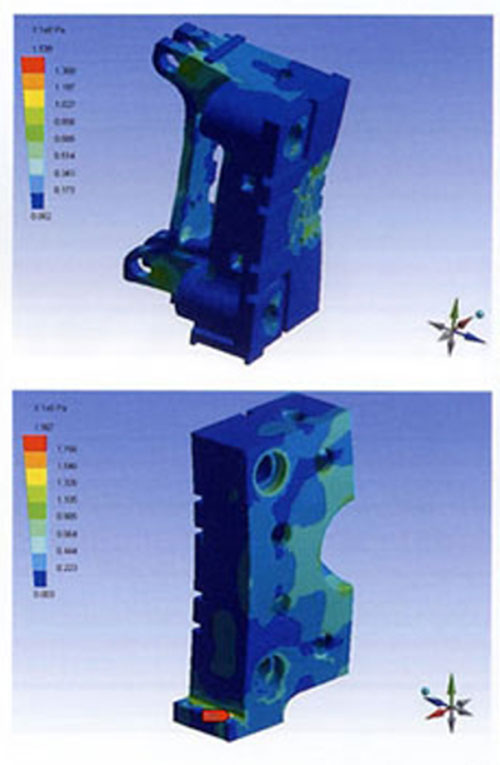

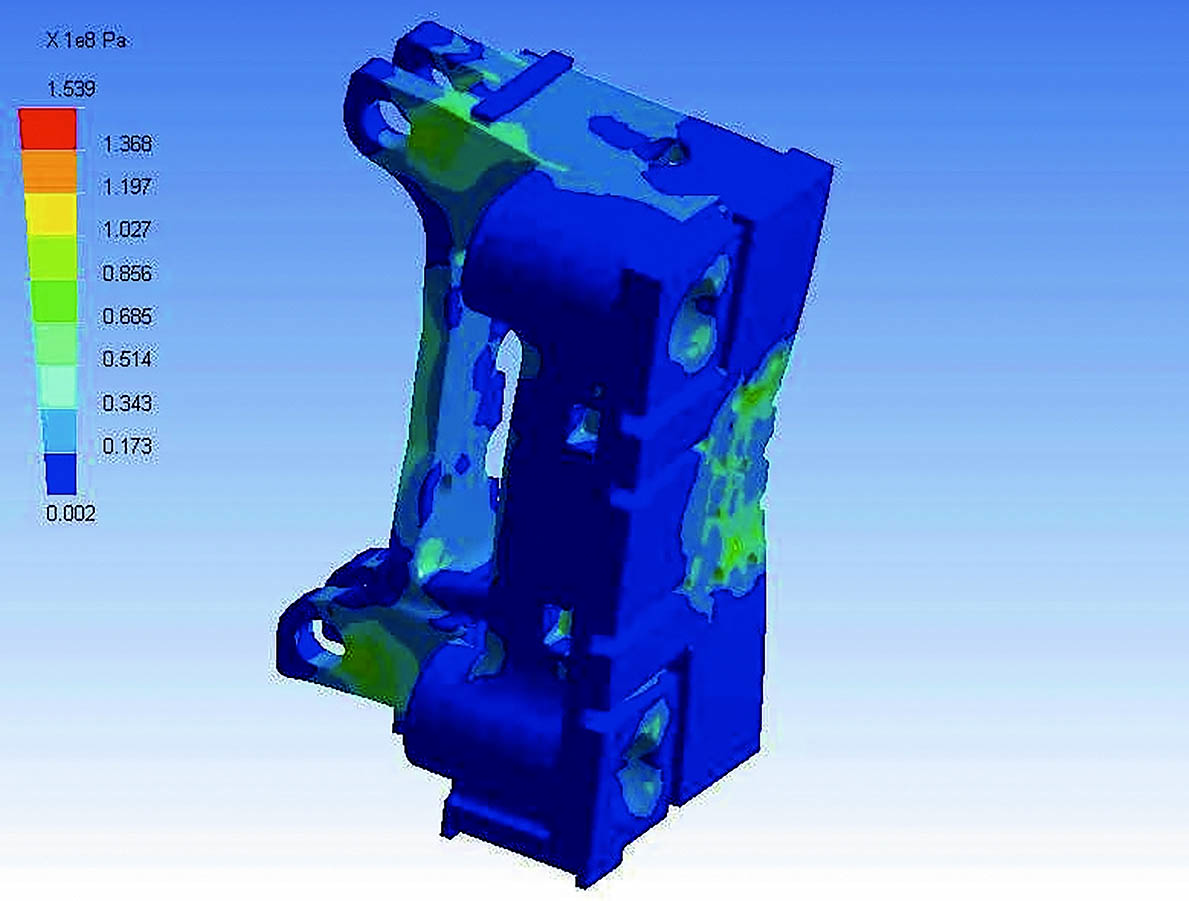

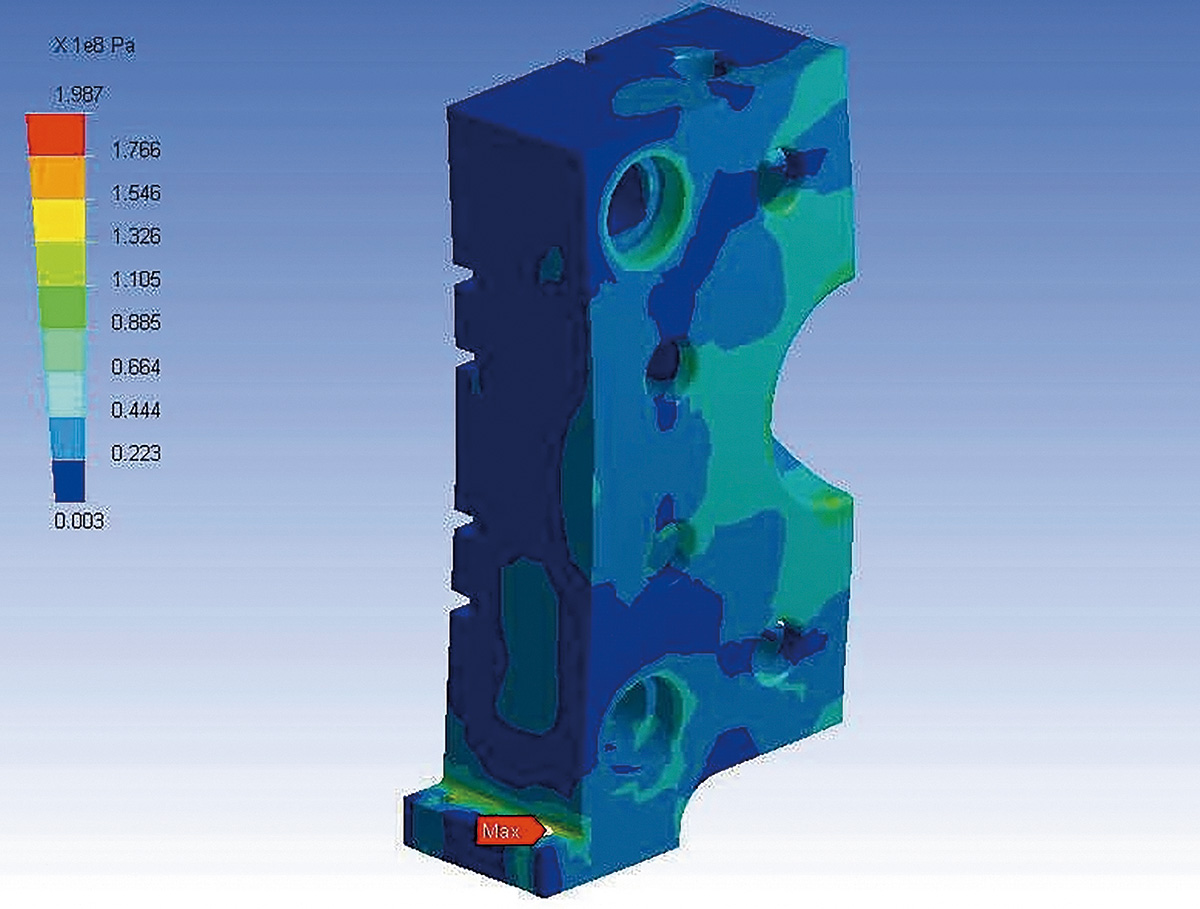

• High-Stiffness Box-Frame Platens

  FEA-validated design keeps deformation near zero under full clamp, eliminating flash on critical thin-wall parts.

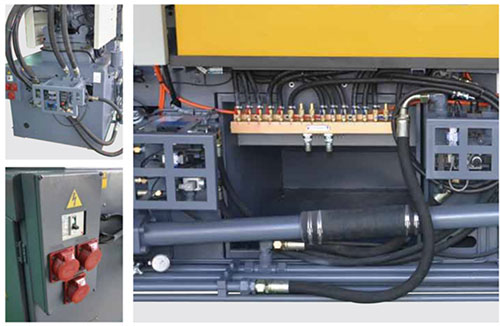

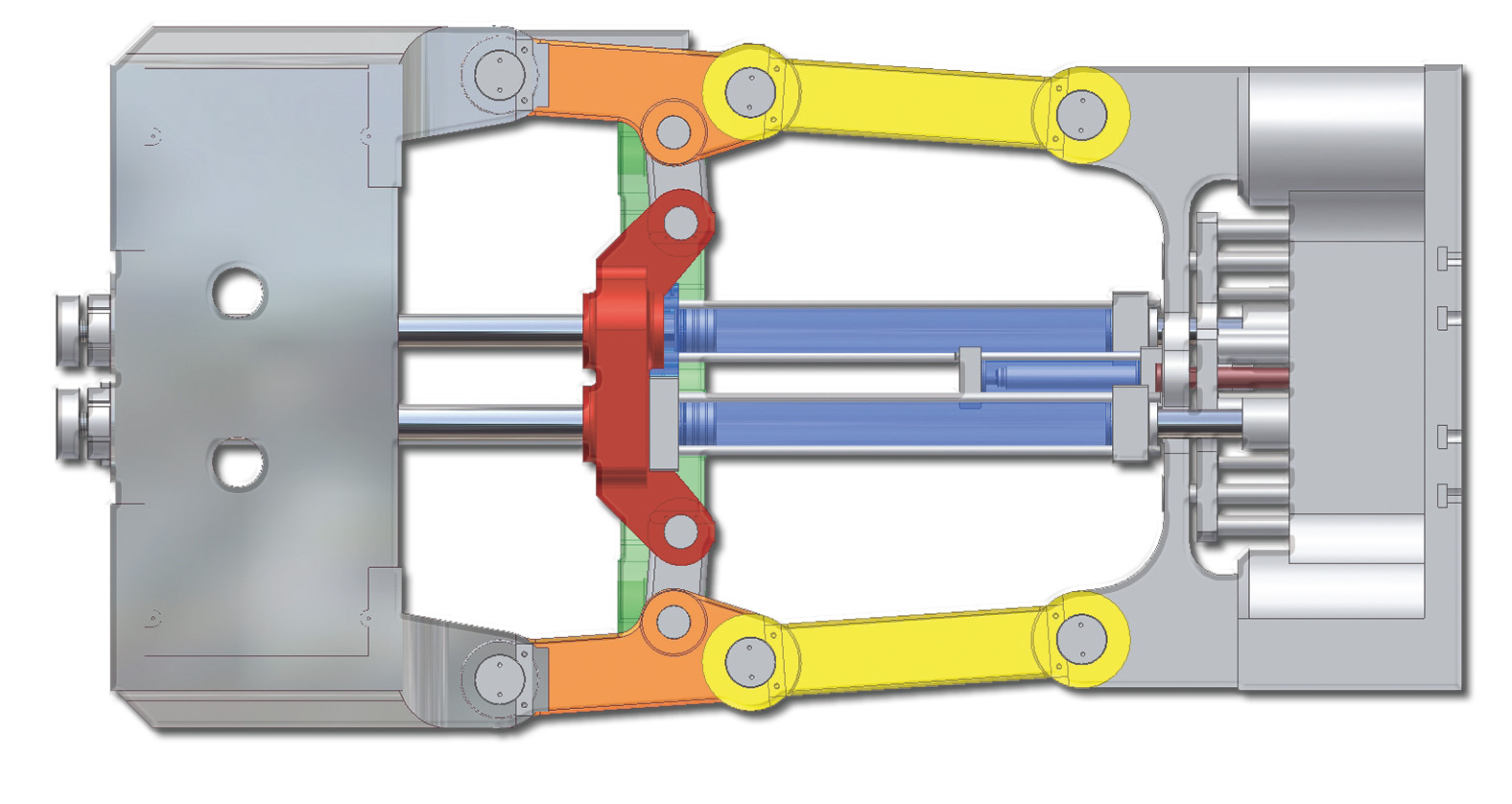

• Diagonal Hydraulic Cylinders

  Built-in diagonal layout on ≥ 400 t models shortens unit length by up to 20 %, freeing floor space.

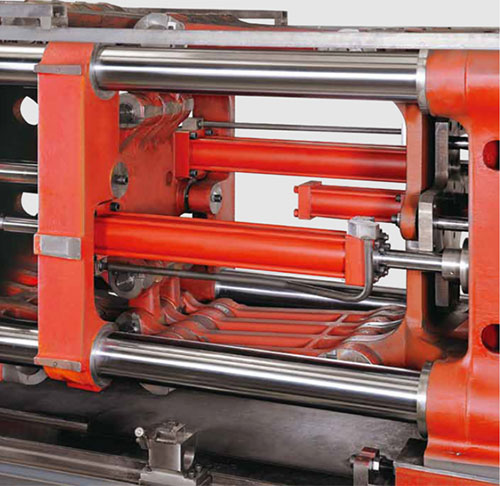

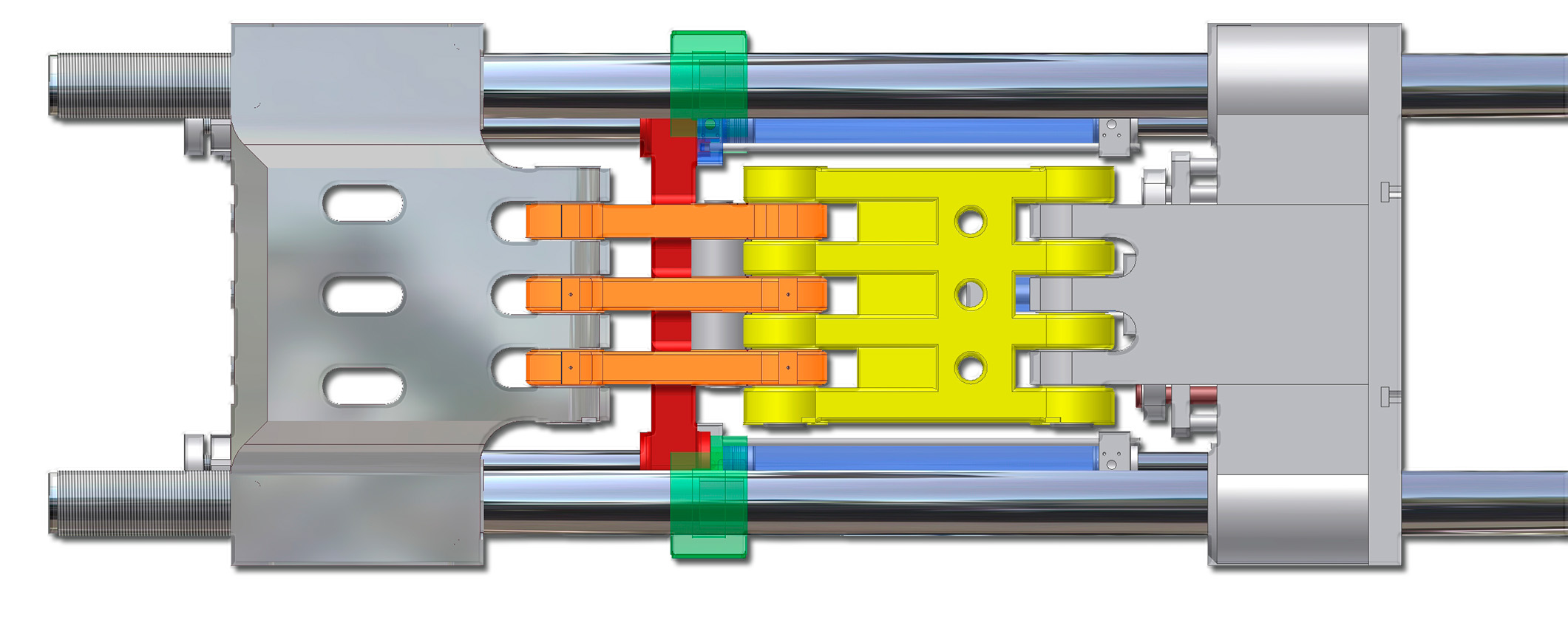

• 4-3-4-3 Toggle Plate Assembly

  Robust multi-platen linkage balances clamp loads and extends toggle lifespan under heavy-tonnage use.




• Accumulator-Backed Hybrid Drive

  Kinetic-energy storage cushions power peaks, delivering rapid platen acceleration with minimal electricity draw.

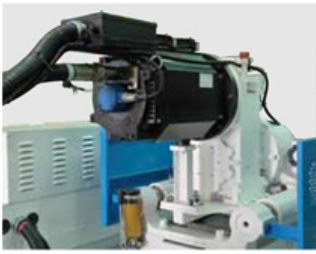

• Servo Electric Material Storage

  Integrated electric hopper feed ensures precise, contamination-free resin delivery for uniform melt quality.

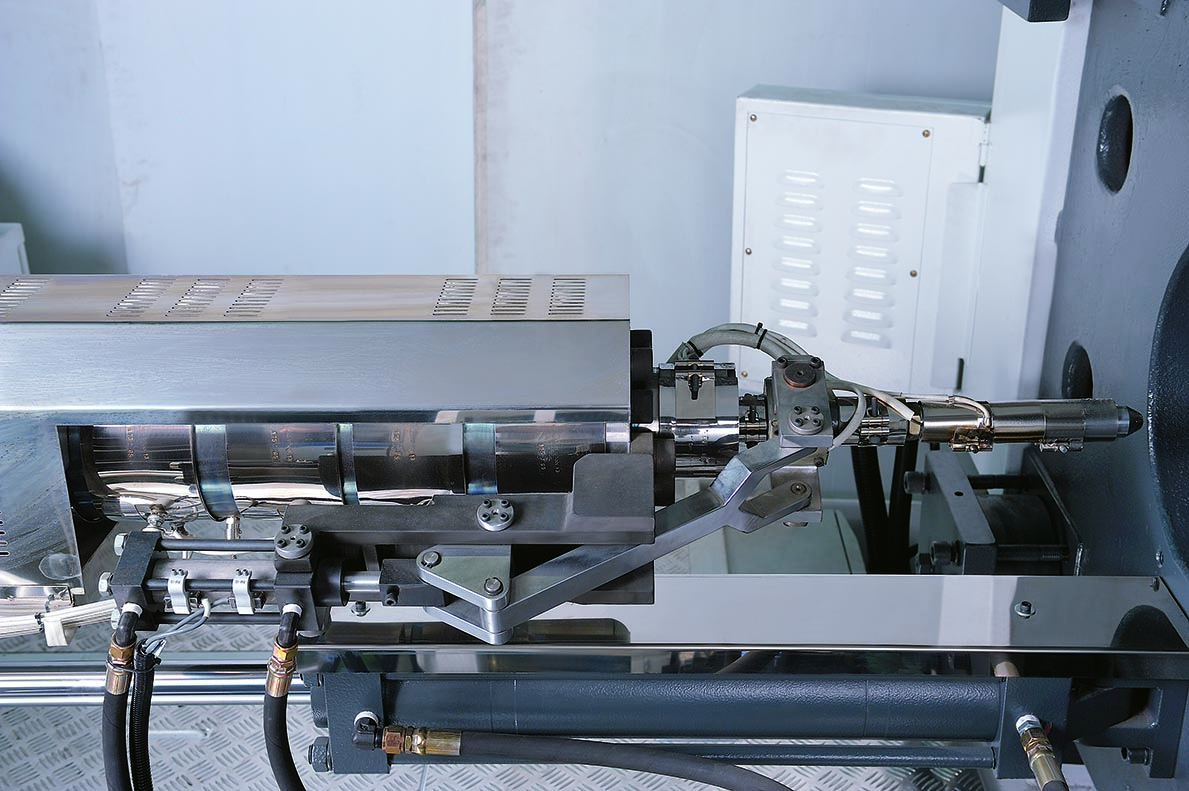

• Sealed-Type Injection Unit

  Fully enclosed barrel and nozzle guard against dust and contaminants, reducing maintenance points.

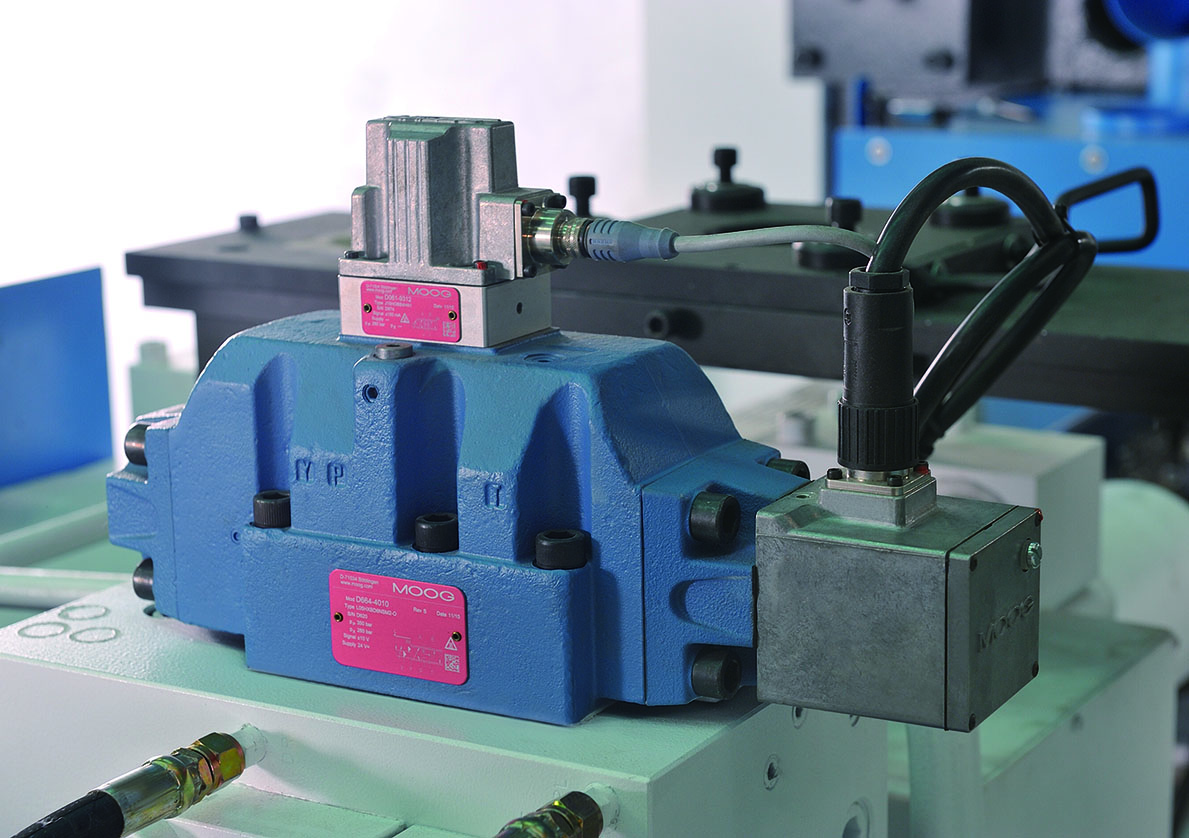

• MOOG Servo Valves

  Precision-engineered valves enable ultra-fine pressure control and repeatable shot-to-shot consistency.



• Multi-Language KEBA Controller

  Intuitive touchscreen UI toggles between Traditional/Simplified Chinese, English, Spanish, and more in seconds.

Why Manufacturers Choose CLF TX Series

• Global Service, Local Response

  24/7 technical support across Asia, Europe, and the Americas; average response < 24 hrs.

• Genuine Parts & Maintenance

  On-site kits, remote diagnostics, and preventive-maintenance programs minimize downtime.

• Thin-Wall Expertise

  Purpose-built for packaging, medical, consumer electronics, and intricate multi-color components.

• Automation-Ready Architecture

  Modular platforms integrate IML cells, robots, conveyors, and IIoT monitoring with minimal rewiring.

Frequently Asked Questions

1. What exactly makes the TX Series “high speed”?

   Rapid clamp-motion (< 2 s dry-cycle), injection speeds up to 1 400 mm/s, and optimized toggle kinematics for maximum shots with minimal energy.

2. Can I upgrade my existing presses?

   Yes—CLF offers turnkey retrofit packages including servo-hydraulic drives, IML kits, and remote-monitoring modules that bolt onto most factory layouts.

3. How do I select the right tonnage?

   Use our Clamp-Force Selector Tool or consult CLF’s applications engineers to match mold size, shot weight, and cycle-time goals. Or read more How to Calculate Injection Molding Tonnage : A Step-by-Step Guide.
