TWII SERIES
Toggle Injection Moulding Machine
Outward toggle type mold-clamping features minimum deformation of mold platen and accurate flatness.
Injection using high rigidity and highly linear support and guidance, achieving low friction, smooth movement, fast response and high precision molding.
With the specially designed five-point toggle mechanism, faster mold clamping speed can be achieved.
Injection unit uses low-friction linear slide design, the injection stability of a substantial increase in product.
High-performance and Energy Saving Servo Motor Storage Unit
"The plasticization process adopts electric servo motors and high-performance gearbox drive. Energy-efficient and capable of independent loop control."

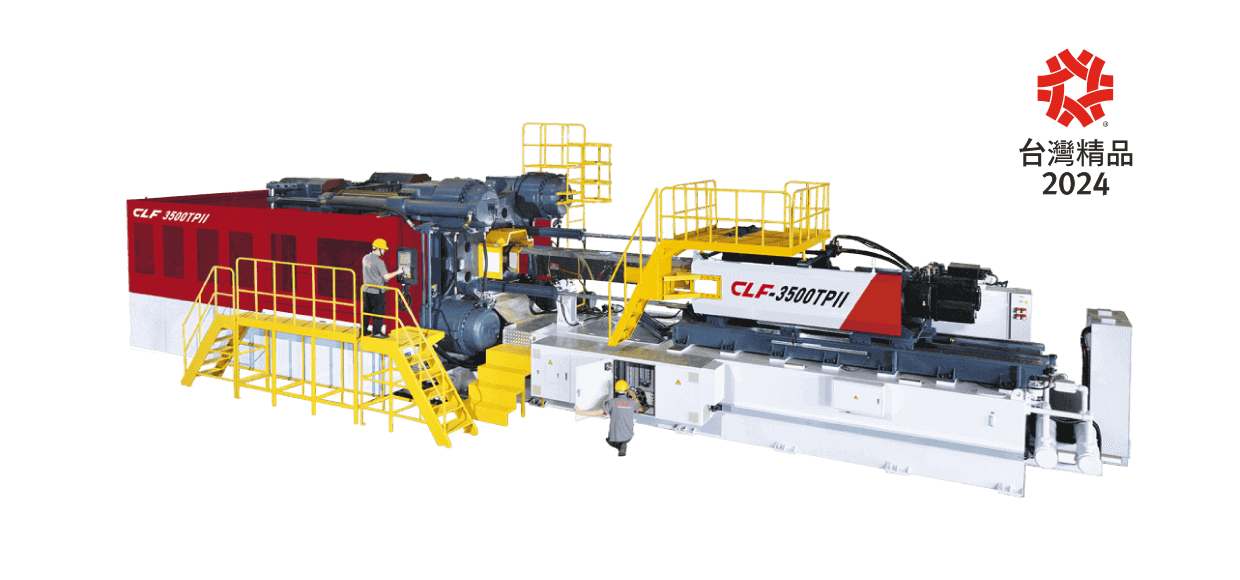

TPII SERIES
Two Platen Plastic Molding Machine
The pillar clamping unit adopts a synchronized top and bottom mechanism design to ensure fast clamping speed and smooth operations.
The high-rigidity machine wall and extended moving template slide seat enable smoother mold open-close operation and allows heavier molds.
The diagonally configured cylinders deliver a rapid mold open-close operation with a powerful, balanced, and swift force application.
The direct-pressure 4-cylinder pillar mold locking system delivers uniform force distribution on the machine wall and minimizes mold deformation. The mold can be adjusted more precisely and rapidly.
The injection unit’s precision linear track support and guidance feature advantages including low friction, high precision, and smooth operations.
(Optional) The servo energy-saving system and high-efficiency electric plasticizing system achieve energy savings and carbon reduction.
The Austrian OPCUS-supported KEBA programmable high-performance controllers enable customer to implement them into its digital system.
The new two-platen compact design requires less footprint. The machine's length is shortened by over 15% that reduces transportation and installation costs. This design also allows smaller factories to improve overall operational costs by flexibly and efficiently allocating more machines.
The optimized five-point internal toggle mechanism and a 4-3-4-3 platen linkage design achieves high-speed performance and high-rigidity characteristics.
The mold-locking cylinder is configured diagonally to utilize factory space by reducing overall mold-locking mechanism length.
The fixed moving platens adopt a box-type structural design to increase the platen size and improve structural rigidity.
The Japanese micro controller and a color LCD screen feature a powerful function and easy-to-learn operations.
(Optional) The servo energy-saving system and high-efficiency electric plasticizing system achieve energy savings and carbon reduction.
The unique five-point toggle mechanism with internal cylinders deliver advantages including fast mold open-close, extensive mold opening stroke, minimal mold deformation, and a shortened overall machine length.
The high-performance servo rotary mechanism features rapid rotation speed and precise mold positioning.
The Japanese micro controller and a color LCD screen feature a powerful function and easy-to-learn operations.
The compact injection unit enables highly customizable configuration options to meet specific needs.
(Optional) The servo energy-saving system and high-efficiency electric plasticizing system achieve energy savings and carbon reduction.
WHAT DO YOU NEED?
automobile industry, medical equipment, to national infrastructure projects.
WHAT DO YOU NEED?
automobile industry, medical equipment, to national infrastructure projects.
WHO WE ARE
solid team has innovative spirit to provide superior quality equipment. Our expertise gives you peace of mind.
YOUR PEACE OF MIND BRAND
leading and global brand in plastic injection machinery. Starting from small size plastic injection molding machines, through constant improvement and
innovation, CLF now has diverse models to provide complete plant optimization and provide global service.
THE LEADING MANUFACTURER OF
LARGE PROCESSING EQUIPMENT
Over the years, CLF has always treated each model with the highest standards. With a R&D team that has decades of experience who are able to use the company’s various high-precision process equipment, they focus on the smallest details to create the perfect performance in machines, and continue to bring about even higher standards of performance for future generation of injection machines.
