Medical Injection Molding Machine

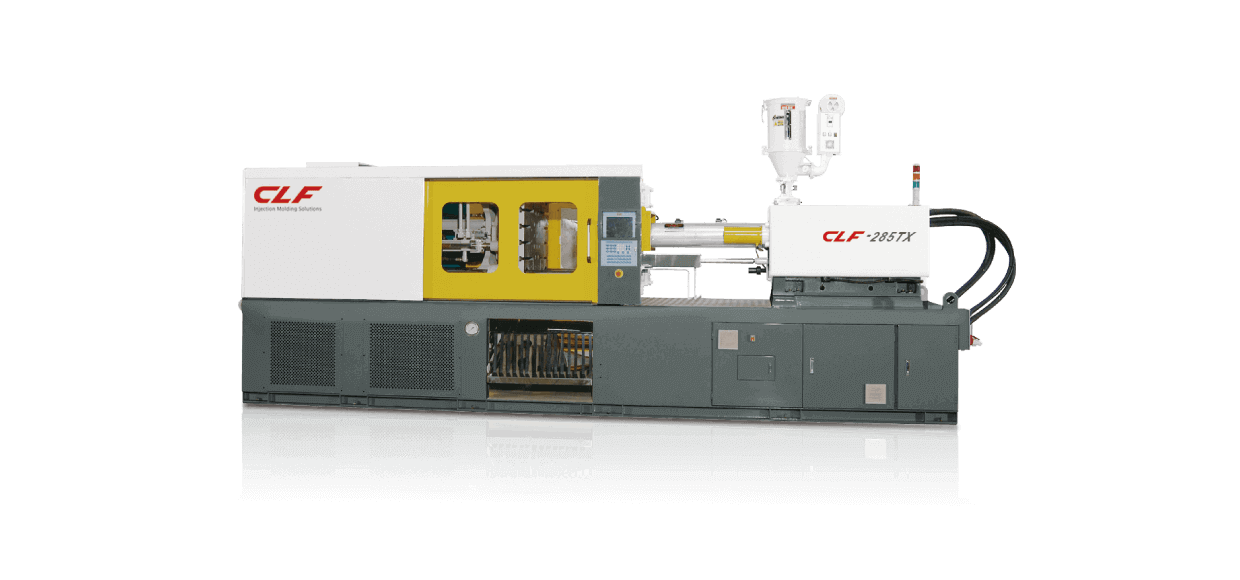

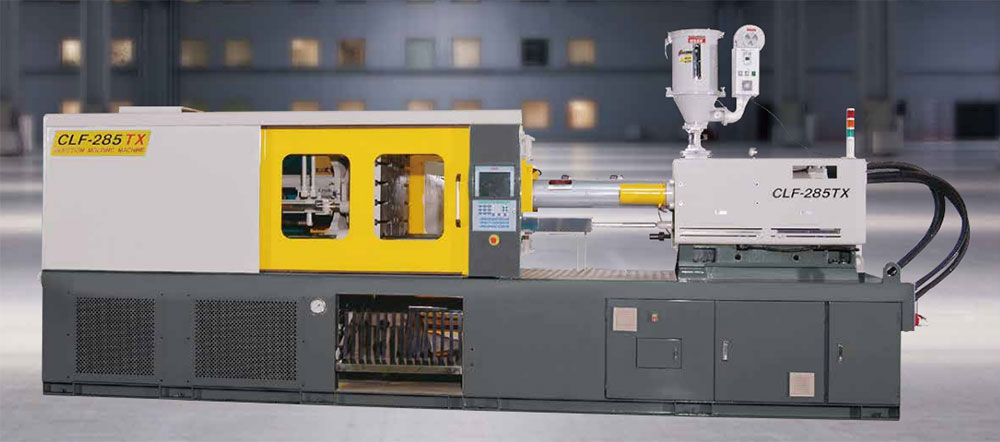

Medical plastic parts require precision, cleanliness, and repeatability far beyond standard molding applications. CLF’s TX Series High-Speed Injection Molding Machine delivers stable, contamination-resistant, high-speed medical production for manufacturers seeking consistent, compliant results.
What Is a Medical Injection Molding Machine?
Medical molding requires equipment engineered for accuracy and cleanliness. A medical injection molding machine is specifically designed to produce medical-grade plastic parts under strict quality, safety, and clean-room requirements. The TX Series supports tight tolerances, low-particulate operation, and high-speed molding for critical components used in healthcare, diagnostics, and pharmaceutical applications.
Why Choose CLF TX Series for Medical Injection Molding?
The TX Series combines high speed, precision, and clean-room–ready design to meet medical manufacturing demands.
-
High-Speed Injection Performance for Thin-Wall Medical Products
Fast cycles are essential for labware, cups, tubes, and high-volume medical consumables. The TX Series is optimized for thin-wall and deep-draw parts with a fast-response servo-hydraulic system, high plasticizing capacity, and rapid toggle movement. These features deliver shorter cycles and stable melt flow—ideal for PCR tubes, sample cups, and other precision medical disposables.
-
Unmatched Precision for Tight-Tolerance Medical Components
Medical devices rely on consistency, accuracy, and repeatable quality.With a rigid 5-point toggle mechanism, high-stiffness platens, and precision hydraulic controls, the TX Series ensures stable clamping and ±0.5% product weight repeatability. This guarantees the consistent molding of syringe components, housings, connectors, and diagnostic parts.
-
Clean-Room Ready, Contaminant-Resistant Design
Medical production requires equipment engineered to minimize dust and particulate generation.The TX Series features fully enclosed guarding around the barrel, nozzle, and injection unit to prevent contamination. Low-lubrication mechanisms, smooth surfaces, and easy-to-clean machine interfaces support clean-room compliance and reduce contamination risks in sensitive applications.
-
Energy-Efficient Operation for 24/7 Medical Manufacturing
Cost control and stable uptime are crucial for high-volume medical molding.CLF’s servo energy-saving system reduces power consumption by up to 70% compared to conventional hydraulics. Intelligent energy management ensures consistent performance during long production cycles, making the TX Series ideal for continuous medical manufacturing environments.
-
Built for Long-Term Stability and Reliability
Medical processors depend on equipment that performs consistently over years of operation. The TX Series is built with in-house machined platens, optimized tie-bar designs, and a rigid frame structure that ensures long-term accuracy. Stable hydraulic and electrical systems provide reliable 24/7 performance, essential for high-output medical production lines.
Applications: Where CLF TX Series Excels in Medical Molding
The TX Series supports a broad range of medical consumables, diagnostic tools, and device components.
Disposable Medical Consumables
High-volume items require fast cycles and repeatable accuracy.Ideal for syringe barrels, plungers, Luer locks, IV components, catheter accessories, and medical fasteners.
Diagnostic & Laboratory Products
Thin-wall and transparent parts demand high-speed injection and optical clarity.Used for PCR tubes, microtubes, sample cups, Petri dishes, assay trays, and rapid-test housings.
Medical Electronic Device Housings
Precision housings require dimensional stability and smooth surface finishes.Suitable for blood oxygen monitor covers, portable diagnostic device casings, and electronic enclosures.
Pharmaceutical Packaging Components
Packaging parts must meet strict compliance and consistency standards.Ideal for dosage cups, caps and closures, vial components, and bottle accessories.
Recommended Machine Specifications for Medical Applications
Different medical components require specific tonnage and machine capabilities.
| Medical Application | Suggested Tonnage | Key Features Needed |
|---|---|---|
| Thin-Wall Labware | 100–220T | High-speed injection, stable clamping |
| Syringe Components | 120–280T | High precision, clean-room guarding |
| Diagnostic Device Housings | 200–350T | Dimensional stability, smooth finish |
| IV / Catheter Accessories | 80–180T | High repeatability, micro-scale accuracy |
| Pharmaceutical Caps & Closures | 150–250T | Fast cycles, servo energy-saving system |
(Values for reference; final selection depends on mold design, resin, and cycle target.)
Technical Specifications — TX Series (Common Medical Configurations)
Below are the most commonly used TX Series specifications for medical molding applications. These models offer an optimal balance of clamp force, shot size, injection pressure, and platen dimensions for medical-grade production.
| Model | Clamping Force | Screw Diameter | Injection Pressure | Shot Weight (PS) | Tie-Bar Distance |
|---|---|---|---|---|---|
| 100TX | 100 tons | 30–40 mm | up to 2800 kg/cm² | up to 240 | 390 × 390 mm |
| 150TX | 150 tons | 40–50 mm | up to 2327 kg/cm² | up to 438 | 460 × 460 mm |
| 180TX | 180 tons | 40–50 mm | up to 2327 kg/cm² | up to 438 | 510 × 510 mm |
| 230TX | 230 tons | 45–55 mm | up to 2322 kg/cm² | up to 583 g | 560 × 560 mm |
| 285TX | 285 tons | 50–60 mm | up to 2500 kg/cm² | up to 772 g | 610 × 610 mm |
These models cover the full range of medical consumables, diagnostic products, syringe components, pharmaceutical packaging, and electronic housings.
Why the TX Series Is a Strategic Investment for Medical Manufacturers
The TX Series delivers precision, cleanliness, and performance essential for medical markets. With clean-room–ready design, high-speed injection, and long-term stability, the TX Series is an ideal solution for manufacturers producing medical consumables, diagnostic devices, and pharmaceutical packaging components. Its balanced performance and low operating cost make it a reliable choice for regulated and high-demand applications.
