Toggle Injection Moulding Machine
At CLF, a trusted leader among global plastic injection molding machine manufacturers, we proudly introduce the Outward Toggle Type Injection Molding Machine. Engineered for high-precision, high-rigidity, and deep-cavity applications, the TWII Series leverages an innovative external toggle mechanism to deliver superior mold protection, enhanced product quality, and flexible manufacturing solutions.
Covering clamping forces from 100 to 5000 tons, the TWII Series empowers manufacturers to achieve high-performance production with minimal platen deformation, extended mold opening strokes, and intelligent energy-saving options.
What is Toggle Injection Molding?
Toggle injection molding utilizes a mechanical toggle system to generate clamping force during the molding process. Unlike hydraulic ram clamping, the toggle mechanism concentrates force at the center of the platen, ensuring uniform pressure distribution, minimal platen deformation, and rapid mold opening and closing cycles. This makes toggle systems ideal for high-speed, high-precision, and deep-cavity applications across various industries.
The TWII Series specifically features an outward toggle design, where the toggle arms move outward instead of inward. This design innovation reduces the overall space requirement, enhances mold accessibility, and enables better accommodation of wide, deep, and long molds—perfect for industries such as automotive bumper production.
Performance at a Glance
Model | Clamp Force (t) | Tie-Bar Distance (mm) | Mold Opening Stroke (mm) | Typical Applications |
---|---|---|---|---|
CLF-100TWII | 100 | 400 × 350 | 360 | Small precision parts, deep packaging |
CLF-360TWII | 360 | 710 × 630 | 700 | Industrial containers, automotive components |
CLF-750TWII | 750 | 1010 × 860 | 1050 | Large storage bins, logistics pallets |
CLF-1800TWII | 1800 | 1650 × 1400 | 1650 | Automotive deep-draw panels |
CLF-2800TWII | 2800 | 2000 × 1600 | 1900 | Automotive bumpers, heavy-duty molded parts |
CLF-4200TWII | 4200 | 2400 × 2000 | 2550 | Oversized industrial products |
CLF-5000TWII | 5000 | 2600 × 2200 | 2800 | Extra-large deep-cavity molded components |
Performance may vary depending on mold design, material properties, and cycle settings. For full specifications including 250t, 500t, 1100t, and 3500t models, please download our detailed spec sheet.
Benefits of Toggle Injection Moulding
-
Minimal Mold Platen Deformation
: Center-focused clamping force ensures superior surface flatness and dimensional stability.
-
Faster Cycle Times
: Rapid mold closing and opening speeds enhance production efficiency. -
Energy Efficiency
: Outward toggle systems, combined with servo-driven systems and electric material storage, can achieve up to 75% energy savings. -
Space-Saving Machine Design
: The outward toggle structure reduces the machine footprint, ideal for facilities with limited space. -
Enhanced Mold Accessibility
: Easier and faster mold installation and maintenance due to more accessible mold areas. -
High Precision and Repeatability
: Consistent clamping force and mold alignment deliver reliable molding results batch after batch. -
Extended Mold and Machine Life
: Uniform stress distribution reduces mechanical wear and increases service life.
Deformation condition caused by outward toggle clamping force
Deformation condition caused by inward toggle clamping force
Core Machine Features
-
Center-Focused External Toggle System
The five-point external toggle mechanism concentrates clamping force at the center of the platen, minimizing deformation and maximizing precision.
-
High-Rigidity Injection Unit
Supported by precision linear slide rails, the injection unit achieves low-friction, high-accuracy, and fast-response movements for optimal molding performance. -
Customizable Extra-Long Mold Opening Stroke
The TWII Series offers tailored mold opening stroke extensions to accommodate deep-draw products and large molds, such as automotive bumpers. -
Energy-Saving and Smart Options
Available upgrades include servo-driven systems, electric material storage, multi-circuit hydraulics, low-energy heating solutions, and remote monitoring for enhanced operational efficiency. -
PP High Mixing Screw Design
To meet the stringent surface quality requirements of automotive parts, the TWII Series is available with specialized PP high-mixing screws, delivering smoother, higher-quality surfaces. -
Optimized Speed and Durability
Compared to traditional inward toggle systems, CLF’s outward toggle design achieves faster mold movements while maintaining structural integrity and long-term reliability.
If you're interested in understanding how toggle systems fit into the broader machine landscape, we invite you to learn more about Different Types of Plastic Injection Molding Machines. For tips on equipment selection, don't miss our guide on How to Choose the Right Injection Molding Machine. You can also explore deeper insights into toggle technology in our detailed Toggle Injection Molding Machine article.
Real-World Applications
-
Automotive Industry
: Bumpers, dashboards, deep structural components. (Example : A leading Taiwanese bumper manufacturer uses a CLF 2800-ton TWII machine to produce 1376g bumpers within a 93.5-second cycle, achieving <0.5% weight tolerance and over 75% energy savings.)
Learn more about how the right injection molding machine can maximize efficiency and quality in automotive bumper production in our detailed guide Maximizing Efficiency and Quality in Car Bumper Molding with the Right Machine. -
Industrial Manufacturing
: Large containers, pallets, heavy-duty parts. Learn practical strategies for enhancing plastic pallet production efficiency in our guide How to Optimize Your Production of Plastic Pallets?. -
Consumer Goods
: Deep cavity storage bins, ergonomic designs requiring dimensional precision. -
Packaging Solutions
: High-volume production of deep-draw containers and trays.
Key Design Considerations for Toggle Injection Molding
-
Mold Design for Uniform Clamping
: Ensure central force distribution to minimize deformation. -
Material Selection
: Use materials suited for deep-draw applications with stable flow characteristics. -
Cooling and Ejection Optimization
: Balance cooling channels and design robust ejection systems for large or deep parts. -
Machine Size Matching
: Select appropriate clamping force and stroke length based on product depth and size.
Why Choose CLF TWII Series?
-
Precision-Crafted Clamping Structures
: Designed for outstanding flatness and durability. -
Flexible Customization
: Tailor mold opening strokes, injection units, and energy systems to specific production needs. -
Superior Energy-Saving Performance
: Servo systems and electric material storage enable up to 75% energy savings. -
Space-Efficient Design
: Maximize production capability even in space-constrained facilities. -
Global Support and Service
: Preventive maintenance programs, remote diagnostics, and worldwide technical expertise.
Frequently Asked Questions
-
What is the main advantage of an outward toggle system compared to inward toggle systems?
The outward toggle system better concentrates force at the center of the platen, reduces deformation, saves space, and improves mold accessibility. -
Is the TWII Series suitable for deep-draw molding applications?
Absolutely. Its customizable extra-long mold opening stroke and high-rigidity structure make it ideal for deep-cavity production and large automotive parts. -
How does CLF ensure consistent molding precision?

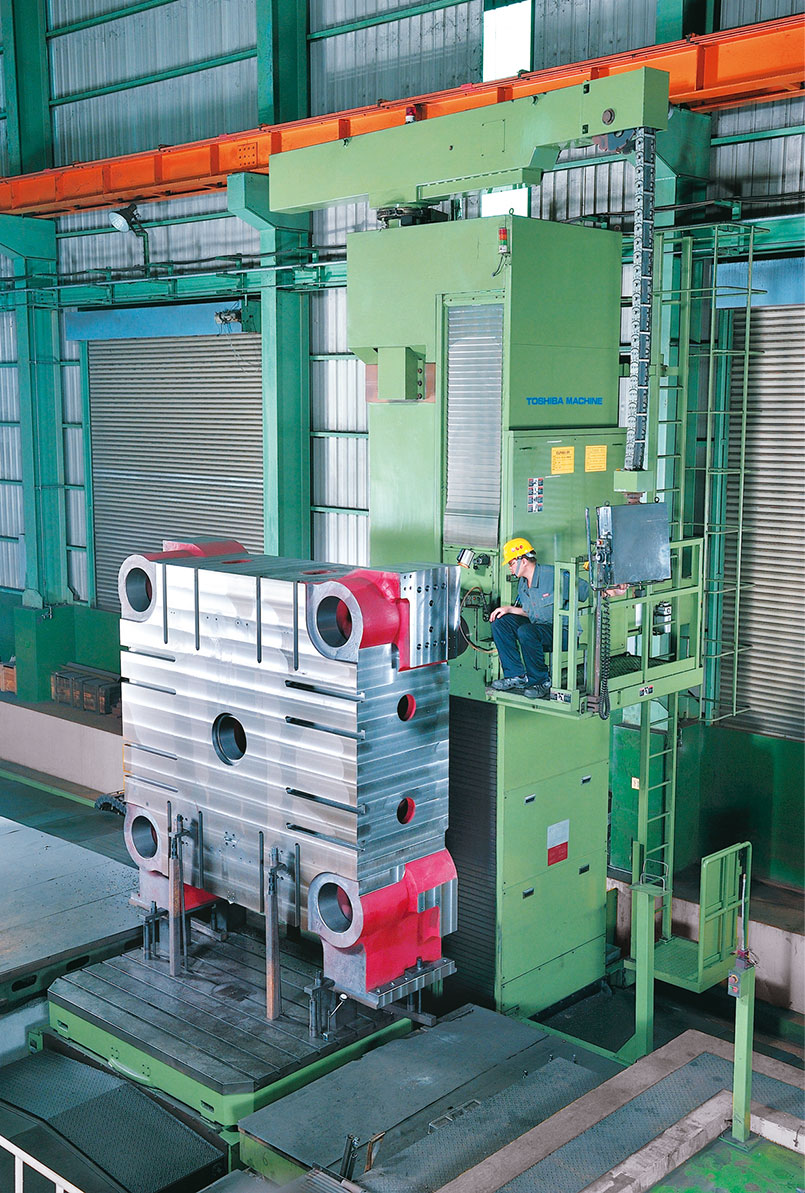

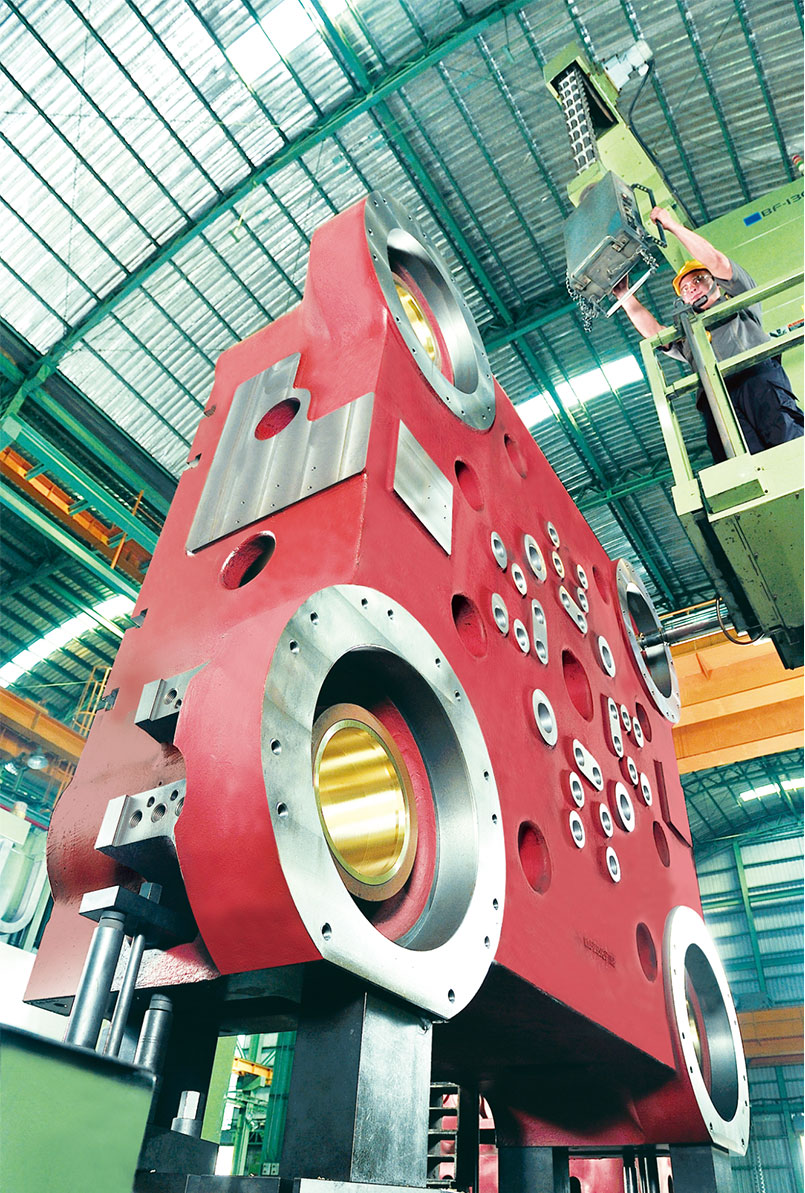

Through factory-tuned machining of platens and tie bars, supported by precision equipment from Japan and domestic high-accuracy centers.
