Carbon Fiber Injection Molding Machines: Precision & Durability for Advanced Composites

In the rapidly evolving world of advanced materials, carbon fiber reinforced polymers (CFRPs) are at the forefront, demanding exceptional precision, strength, and consistency in their manufacturing. CLF’s comprehensive range of injection molding machines, including the Two-Platen (TPII Series) , Outward Toggle (TWII Series), and other advanced models, are engineered to meet the rigorous demands of carbon fiber injection molding across different models and series. Our machines deliver the precision, power, and durability essential for producing high-performance, lightweight components with flawless integrity.

Why Consider CLF for Carbon Fiber Injection Molding?

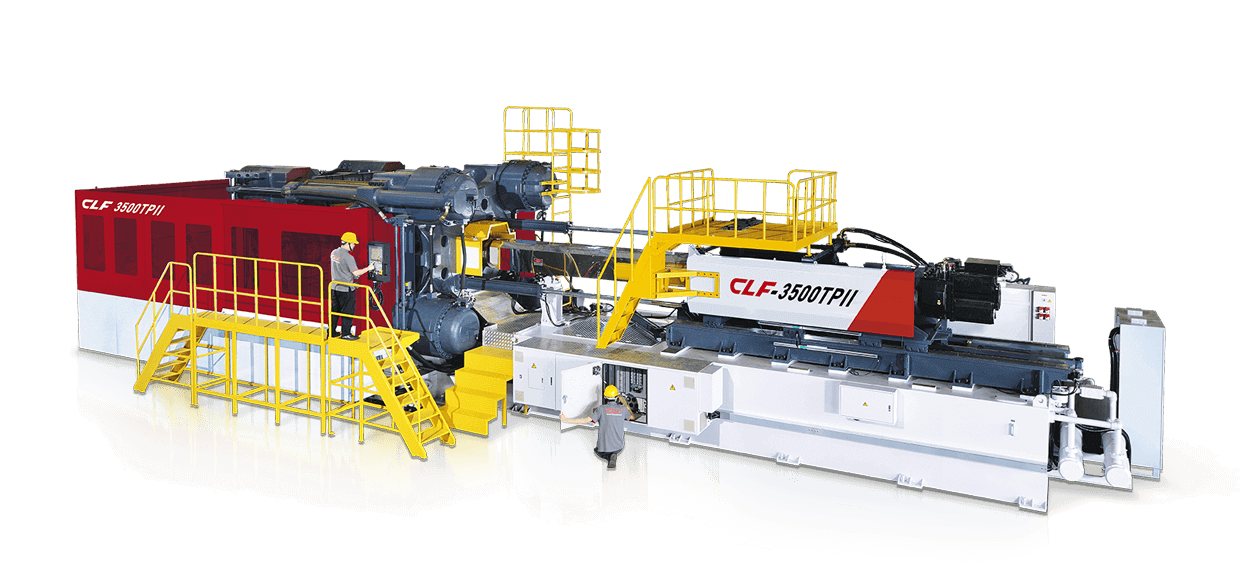

Unmatched Precision and Stability CLF machines come with advanced control systems and high-rigidity structures which enable minimum mold deformation and product absolute precision. TPII Series exemplifies this with high-speed clamping due to high-speed two-platen clamping, along with uniform force distribution which is critical for the tight tolerances required to carbon fiber parts. TWII Series further improves deformation reduction and mold platen flatness with outward toggle frame design, boosting mold platen flatness

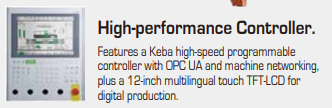

Advanced Injection Control for Superior Material Handling Equipped with high-performance controllers like the Keba system, CLF machines offer precise control over injection parameters. The TPII Series' electric servo feeding and needle-valve nozzle enable multi-shot cycles, reducing cycle time and boosting efficiency, which is vital for complex carbon fiber material flow. The low-friction linear slide design in the TWII Series’ injection unit further increases injection stability, ensuring superior product quality.

Optimized for Advanced Materials & Wear Resistance While carbon fiber can be abrasive, CLF machines are built with high-strength tie bars and critical parts machined in-house by Japanese-made and domestic high-precision machine tools. This focus on the quality of construction strengthens dependability and trustworthiness in especially advanced and challenging materials to process.

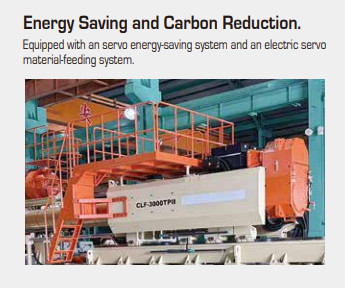

Sustainability and Energy Efficiency. Furthermore, the CLF machines embody sustainability. An example would be the TPII Series, which has a smaller footprint and is energy-saving and environmentally friendly. Several units have servo energy-saving systems, and some have electric servo material feeding systems, both of which lowered energy and operational costs.

High Customization and Flexibility The CLF machines allow customization of carbon fiber part geometries and production needs with clamping force, mold opening stroke, and distance between tie bars. Further, for multi-material carbon fiber composite applications, the TWR/TXIIR series with multi-color and co-injection features adds flexibility, reducing secondary processing and cost.

Make the most out of your advanced composite manufacturing with CLF's Carbon Fiber Injection Molding Machines, your trusted solution for precision, efficiency, and durability in the manufacturing of the lightweight, high-strength components of the next generation.

Applications: Where CLF Machines Excel

• Automotive structural components (chassis parts, body panels)
• Aerospace parts (interior components, secondary structures)
• Sporting goods (bicycle frames, tennis rackets, golf clubs)
• Industrial parts requiring high strength-to-weight ratios
• Electronics and consumer goods requiring robust, lightweight designs
